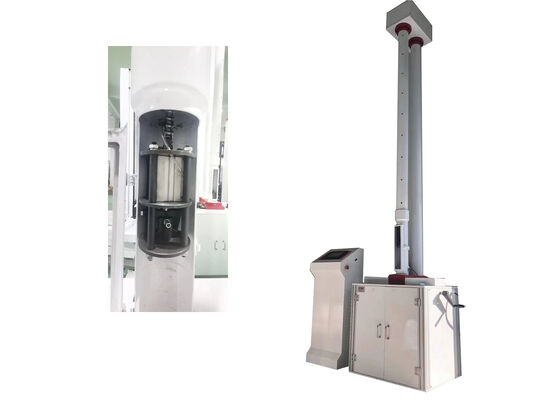

Drop Hammer Test Equipment
This Non-Metal Pipe Impact Testing Machine is specifically engineered for impact performance evaluation of a broad spectrum of non-metallic pipes. Equipped with a fully automated control system, it integrates intelligent operational functions including automatic secondary impact prevention, automatic hammer zero-position calibration, automatic specimen zeroing, auto hammer hooking, automatic hammer lifting to preset impact height, and automatic safety door closure verification—ensuring standardized, high-precision, and safe test execution.
The machine's integrated control panel and high-resolution display screen deliver real-time visualization of critical test parameters such as impact height, hammer operating speed, and test progress. It features built-in power failure protection that preserves test data and halts all mechanical operations during sudden power disruptions to safeguard both equipment and test specimens.
Extensively deployed for quality assessment of various plastic pipes (including water supply/drainage pipes, sewage pipes, gas transmission pipes, communication pipes, etc.) and plastic sheets, this device serves as the premier testing apparatus for building materials enterprises, scientific research institutions, and industrial quality inspection facilities—delivering reliable and repeatable results for material compliance and performance validation.
Compliance Standards
GB/T14152, GB/T10002.1, GB/T5836.1, GB/T13664, GB/T16800, ASTM D2444, ISO4422, ISO3127, BSEN1411 and BSEN744.
Equipment Characteristics
- The integrated safety protection system fully complies with the 89/392/EEC directive (Machinery Safety Directive), ensuring compliance with stringent European occupational health and safety standards for testing equipment.
- Adopts an industrial-grade color HMI (Human-Machine Interface) paired with a PLC-based distributed control architecture, delivering exceptional operational reliability and facilitating intuitive, centralized control of all test procedures.
- Impact height is infinitely adjustable within the range of 200 mm-2000 mm; the anti-secondary impact capture device achieves a 100% capture success rate across the entire height spectrum, eliminating invalid test data caused by rebound impacts.
- Leverages the vacuum adsorption principle to execute both impact hammer release and secondary capture operations. This design enables rapid hammer actuation, with a maximum hammer striking velocity of 2 m/s for precise and repeatable impact testing.
- Features automatic lifting height calibration with a calibration accuracy of ±1 mm relative to the preset height, guaranteeing consistent impact position control and test result validity.
- Equipped with independent impact hammer modules, where each module is matched to a specific impact energy level. The hammer modules are easy to select and replace, and their robust construction ensures an extended service lifespan for long-term cost efficiency.
Technical Parameters
| Model |
XJL-630S |
| Ambient temperature |
10℃-35℃ |
| Drop hammer quality |
0.5kg-16kg |
| Hammer diameter |
D25mm, D90mm (customizable) |
| Height of the fall |
50mm-2000mm, error≤±2mm |
| Lifting speed |
2m/s |
| Diameter of the sample |
Φ10mm-Φ630mm (customizable) |
| Deviation of impact center from fixture center |
≤2mm |

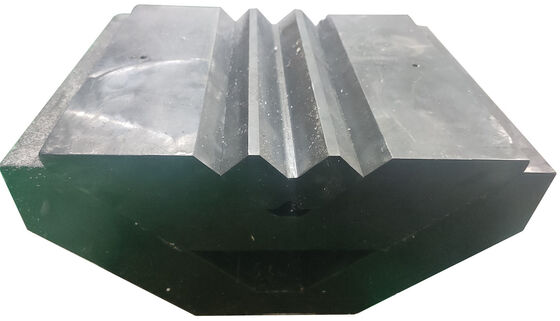

| V-type supporting |
120° |
| Power source |
220VAC±10% |
| Outline dimension |
930mm×700mm×3750mm |
| Net weight |
350kg |
Support and Services
We provide end-to-end technical support and full-scope after-sales services for our Drop Hammer Test Equipment, designed to ensure sustained optimal performance and minimal operational downtime for your testing systems. Our team of certified engineers and seasoned technicians delivers professional guidance and hands-on assistance covering on-site installation, routine preventive maintenance, technical troubleshooting, precision calibration, and other critical operational needs. Additionally, we specialize in developing tailored technical solutions to address your unique testing scenarios, compliance requirements, or project-specific demands.
We are dedicated to upholding industry-leading customer service and support standards. Our technical support team is available 24/7 via multiple channels (including dedicated hotline, email, and remote diagnostic support) to promptly address any inquiries, technical issues, or service concerns you may encounter.
Packing and Shipping
The Drop Hammer Test Equipment is packaged in export-grade reinforced wooden crates to ensure maximum protection throughout domestic and international transit. Each crate is configured with the core testing unit, comprehensive operation and maintenance manuals, auxiliary components, and essential spare parts—all secured with shock-absorbent cushioning materials to prevent in-transit damage. Additionally, every crate is clearly labeled with the equipment name, model number, serial number, and standardized handling instructions (e.g., "Fragile," "Keep Upright") in compliance with international shipping regulations for streamlined cargo identification and logistics management.
For seamless international logistics, we provide a complete set of customs-compliant documentation, including a commercial invoice, detailed packing list, certificate of conformity (where applicable), and all other mandatory paperwork required for cross-border shipping. Shipping costs are calculated based on the destination region, shipment mode (e.g., sea freight, air freight), and the overall volume/weight of the consignment, with flexible quotation options available to align with your delivery timeline and budget.
Frequently Asked Questions
What is the Drop Hammer Test Equipment, and who manufactures it?
The Drop Hammer Test Equipment is a specialized impact performance testing apparatus designed and manufactured by JHH in Beijing, China. Its core function is to quantitatively evaluate the impact resistance of various materials and components under controlled dynamic impact loads.
What is the core purpose of the Drop Hammer Test Equipment in industrial and research scenarios?
The primary objective of this equipment is to accurately measure and assess the impact resistance of target specimens, enabling manufacturers and research institutions to conduct rigorous quality validation, performance verification, and compliance assessment of products to ensure they meet industry standards and application safety requirements.
Which products and materials can be tested with the Drop Hammer Test Equipment?
It is widely applicable for impact resistance testing of a diverse range of pipes, including PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, low-pressure transmission pipes, core-layer foamed pipes, double-wall corrugated pipes, and PE water supply pipes. Additionally, it is compatible with hard plastic sheets and other rigid non-metallic pipe/plate materials for quality inspection.
What is the test accuracy level of the Drop Hammer Test Equipment?
The equipment achieves a comprehensive test parameter accuracy of up to 0.5%, ensuring highly reliable and repeatable impact test data for product performance analysis and quality control.
What is the maximum impact energy capacity of the Drop Hammer Test Equipment?
The apparatus has a maximum rated impact testing energy of 300J, which covers the impact resistance testing requirements of most industrial-grade non-metallic pipes and plastic sheets in mainstream application scenarios.
